Name: 130180MHz NF 2 Way 3dB Coupler Splitter Good Flatness
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-PS-013018-ON2-S

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Interface : N Female

Frequency Range : 130-180

VSWR : ≤1.25

Impedance : 50

Split Loss : ≤3.5

Application : Indoor

ROHS : Compliance

Contact Now

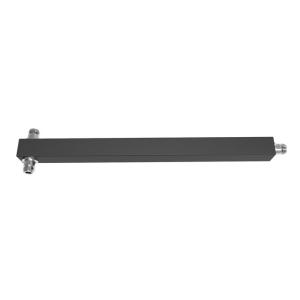

130-180MHz NF 2 Way 3dB Coupler /Splitter

Part Number	VN-PS-013018-ON2-S
Operating Frequency ( MHz )	130-180
Impedance ( Ohm )	50
VSWR	≤1.25
Split Loss /Coupling (dB)	≤3.5
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	330.1 × 25 × 25
ROHS Compliance	Yes
